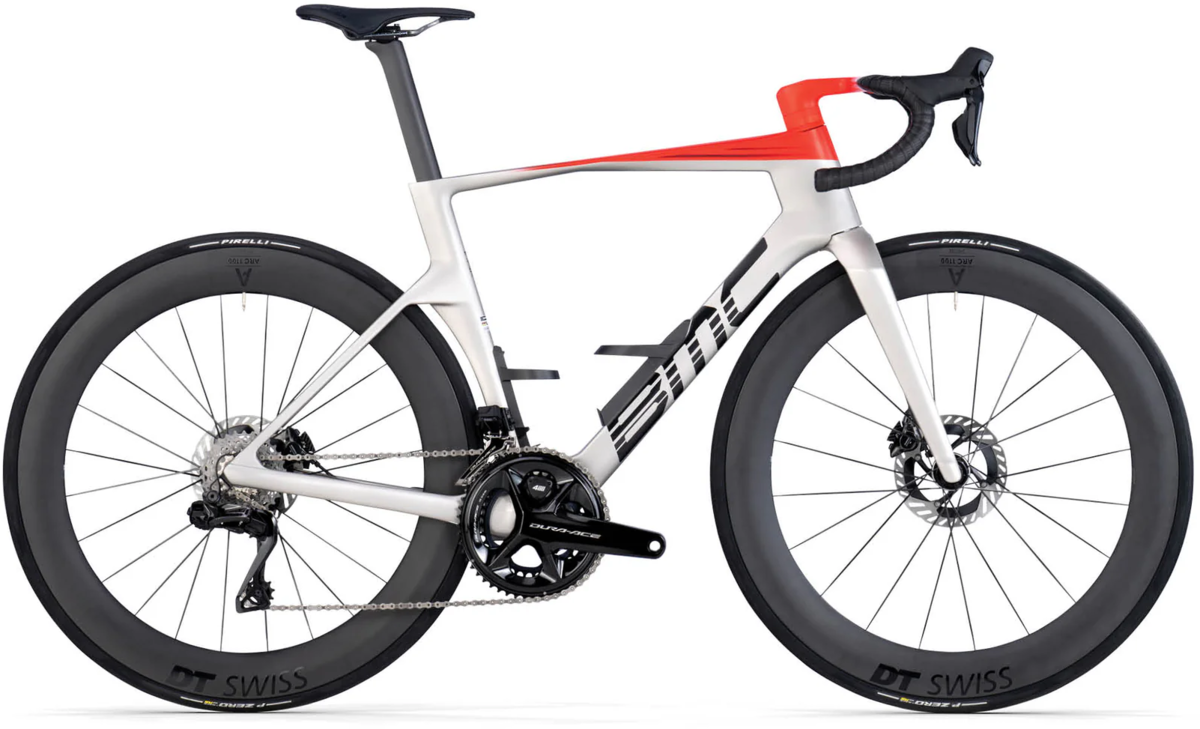

BMC Teammachine R 01 TWO
Details
Every detail is built to turn power into victory. Teammachine R 01 frame fitted with the Shimano Dura Ace Di2 Drivetrain and the last generation of DT Swiss ARC 1100 wheels.
Elevate Every Race. Born from the collaboration with Red Bull Advanced Technologies, the Teammachine R 01 brings professional race performance to every rider. Designed with high stiffness targets, low aero drag, and lightweight construction technics, it’s the fastest road bike ever designed by BMC. Specified with our aero and low stack ICS Aero cockpit, with SHIMANO Dura Ace - the highest quality groupset available -, fit with a powermeter and made even faster with the newest DT Swiss ARC 1100 DiCut 65mm wheels. Whether it’s a summit finish or a solo breakaway, this bike is built to deliver.
System Weight Limit:
110kg
| Frame Size | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Rider Height (cm) | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach (mm) | 368 | 378 | 387 | 393 | 402 | 409 |
| Stack (mm) | 504 | 528 | 548 | 563 | 582 | 608 |
| Bar Drop (mm) | 135 | 135 | 135 | 135 | 135 | 135 |
| Bar Reach (mm) | 77 | 77 | 77 | 77 | 77 | 77 |
| Bar Width (mm) | 360/420 | 360/420 | 360/420 | 360/420 | 360/420 | 360/420 |
| BB Drop (mm) | 69 | 69 | 69 | 69 | 69 | 69 |
| Crank Length (mm) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Length (mm) | 367 | 367 | 367 | 367 | 367 | 367 |
| Fork Rake (mm) | 48 | 48 | 43 | 43 | 43 | 43 |
| Front Center (mm) | 568 | 586 | 589 | 599 | 614 | 630 |
| Head Tube (mm) | 108 | 133 | 149 | 165 | 184 | 211 |
| Head Tube Angle | 71.5° | 71.5° | 72.3° | 72.3° | 72.3° | 72.3° |
| Rear Center (mm) | 410 | 410 | 410 | 410 | 410 | 410 |
| Seat Angle | 74° | 74° | 73.5° | 73.5° | 73° | 73° |
| Seat Tube (mm) | 418 | 463 | 499 | 519 | 541 | 570 |
| Seatpost Length (mm) | 335 | 335 | 385 | 385 | 405 | 405 |
| Seatpost Offset (mm) | 10 | 10 | 10 | 10 | 10 | 10 |
| Standover Height (mm) | 721 | 755 | 781 | 799 | 813 | 836 |
| Stem Angle | -15° | -15° | -15° | -15° | -15° | -15° |
| Stem Length (mm) | 90 | 100 | 100 | 110 | 110 | 120 |
| Top Tube (mm) | 515 | 532 | 552 | 562 | 582 | 598 |
| Trail (mm) | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase (mm) | 968 | 986 | 989 | 999 | 1015 | 1030 |
Specs
| Frame | Teammachine R 01 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle |
|---|---|
| Fork | Teammachine R 01 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle |
| Rims | DT Swiss ARC 1100 DICUT | 65mm |
| Hubs | DT Swiss 180 DICUT | Ratchet EXP 36 |
| Tires | Pirelli P Zero Race TLR RS | Tubeless | 26mm |
| Bottom Bracket | Shimano Dura Ace Press-Fit Bottom Bracket (SM-BB92-41B) |
| Crankset | Shimano Dura Ace (FC-R9200) |
| Chainrings | 52-36T |
| Shifters | Shimano Dura Ace Di2 (ST-R9270) |
| Front Derailleur | Shimano Dura Ace Di2 (FD-R9250) |
| Rear Derailleur | Shimano Dura Ace Di2 (RD-R9250) |
| Cassette/Freewheel | Shimano Dura Ace (CS-R9200) |
| Chain | Shimano CN-M9100 |
| Rotors | Shimano Dura Ace (RT-CL900) | 160mm |
| Brake Levers | Shimano Dura Ace (BR-R9270) |
| Handlebars | ICS Carbon Aero | One-Piece Full Carbon Cockpit | 135mm drop, 77mm reach, 12.5° flare |
| Seatpost | Teammachine R 01 | 01 Premium Carbon Seatpost | 10mm Offset |
| Saddle | Selle Italia SLR Boost Superflow | CarboKeramic Rail | 145mm |
| Extras | 4iiii Precision Gen3+ Power Meter (Dual Side) |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Arctic Silver / Neon Red / 47cm / 700c | 07630906521441 | 30006841 | BMC431152837 |
| Arctic Silver / Neon Red / 51cm / 700c | 07630906521434 | 30006842 | BMC439245637 |
| Arctic Silver / Neon Red / 54cm / 700c | 07630906521427 | 30006843 | BMC434462037 |
| Arctic Silver / Neon Red / 56cm / 700c | 07630906521410 | 30006844 | BMC438761476 |
| Arctic Silver / Neon Red / 58cm / 700c | 07630906521403 | 30006845 | TMR23960436 |
| Arctic Silver / Neon Red / 61cm / 700c | 07630906521397 | 30006846 | TMR237101946 |
